Ubiquiti

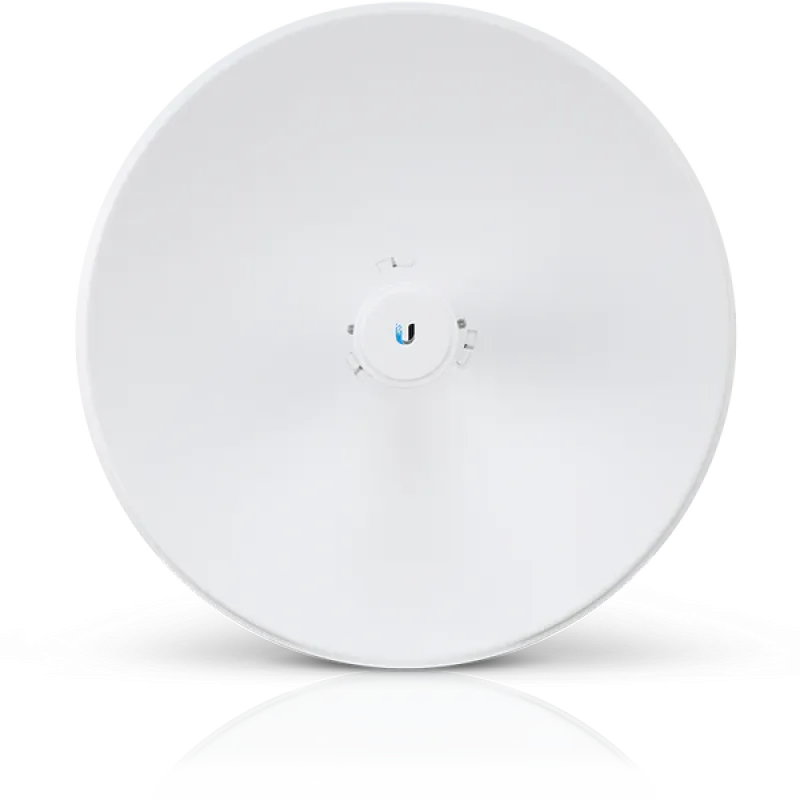

Ubiquiti airMAX PowerBeam 5AC Bridge Gen2
- CertifikatiCE, FCC, IC, RoHS, Anatel: 12697-20-08356
- Maksimalna potrošnja energije8.5W
- Mrežni interfejs(1) GbE RJ45 port
- Isporuka 1-2 radna dana
- Plaćanje pouzećem ili virmanom
- Zvanična garancija proizvođača
- Povrat prema Zakonu o zaštiti potrošača
Ubiquiti PowerBeam 5AC Gen2 je visokoperformantni PtP/PtMP bridge u 5 GHz opsegu.
Ovaj uređaj koristi airMAX AC tehnologiju za nisku latenciju i visoki propusni opseg. Integrisana antena od 23 dBi omogućava stabilne veze na velikim rastojanjima. IP65 kućište i pasivni hlađenje obezbeđuju pouzdanost u eksternim uslovima. Idealno za ISP backhaul i enterprise pristupne mreže.
| Hardver | |
| Certifikati | CE, FCC, IC, RoHS, Anatel: 12697-20-08356 |
| Maksimalna potrošnja energije | 8.5W |
| Mrežni interfejs | (1) GbE RJ45 port |
| Način napajanja | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Napajanje (adapter) | 24V, 0.5A gigabit PoE adapter (Included) |
| Podržani naponski raspon | 20—27V DC |
| Radna temperatura okoline | -40 to 70 C (-40 to 158 F) |
| Radna vlažnost okoline | 5 to 95% noncondensing |
| Management Radio (MHz) | |
| Supported Frequency Range - US/CA | 2412 - 2462 MHz |
| Supported Frequency Range - Worldwide | 2412 - 2472 MHz |
| Mechanical | |
| Dimenzije | 420 x 420 x 230 mm / (16.5 x 16.5 x 9.1") |
| Enclosure Materials | UV-stabilized polycarbonate, powder-coated SPCC |
| Način montaže | Pole Mount (Included) |
| Težina | 2.2 kg (4.9 lb) |
| Wind Loading | 380 N at 200 km/h (85.4 lbf at 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Qualifications | |
| Salt Fog Test | IEC 68-2-11 (ASTM B117) / Equivalent: MIL-STD-810 G method 509.5 |
| Temperature shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40° C (104° F) / Equivalent: ETS 300 019-1-4 |
| Vibration test | IEC 68-2-6 |
| Wind-Driven Rain Test | ETS 300 019-1-4 / Equivalent: MIL-STD-810 G method 506.5 |
| Radio Frequency | |
| Supported Frequency Range - US/CA | U-NII-1: 5150-5250 MHz / U-NII-2A: 5250-5350 MHz / U-NII-2C: 5470-5725 MHz / U-NII-3: 5725-5850 MHz |
| Supported Frequency Range - Worldwide | 5150-5875 MHz |
| Softver | |
| Operating Modes | Access Point / Station |
| Specifikacije | |
| Grupa proizvoda | airMax |
| System | |
| Pojačanje antene | 25 dBi |
| Širina kanala | PtP Mode: 10/20/30/40/50/60/80 MHz / PtMP Mode: 10/20/30/40 MHz |
