Ubiquiti

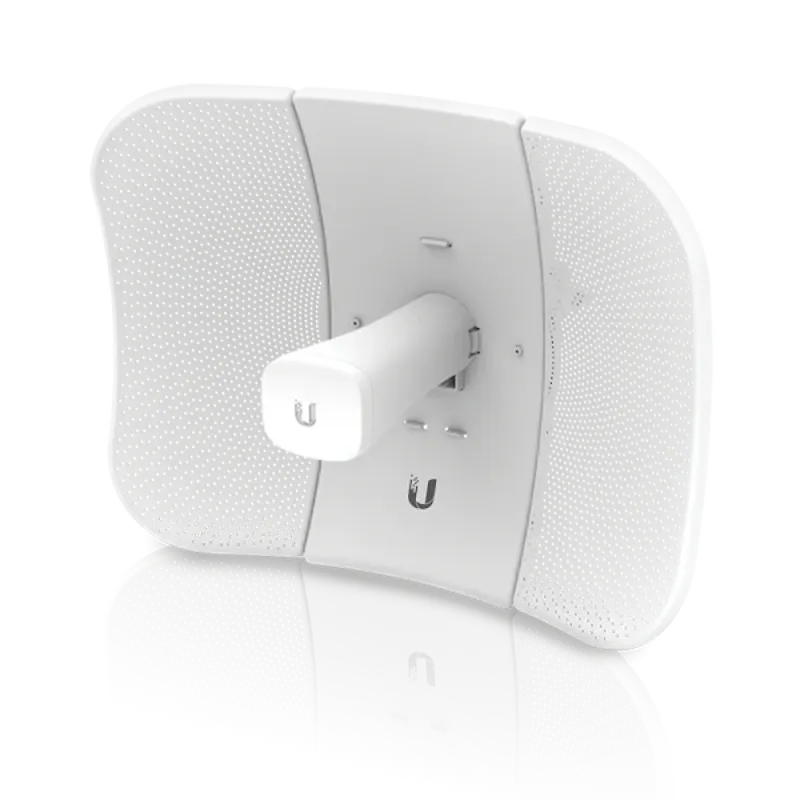

LiteBeam 5 AC GEN2 23dbi

LBE-5AC-EU

5 GHz CPE 23dBi za 15+ km link i 450+ Mbps prometa.

Hardver
Certifikati	CE, FCC, IC, Anatel: 06359-19-08356
Maksimalna potrošnja energije	7W
Max. Power Output	25 dBm
Mrežni interfejs	(1) GbE RJ45 port
Način napajanja	Passive PoE 2-pair (4, 5+; 7, 8 return)
Napajanje (adapter)	24V, 0.3A gigabit PoE adapter (Included)
Podržani naponski raspon	22–27V DC
Radna temperatura okoline	-40 to 70° C (-40 to 158° F)
Radna vlažnost okoline	5 to 95% noncondensing
Management Radio (MHz)
Supported Frequency Range - Worldwide	2412 - 2472 MHz
Mechanical
Dimenzije	358 x 271.95 x 272.5 mm / (14.1 x 10.7 x 10.7")
Težina	Without mount: 800 g (1.8 lb) / With mount 980 g (2.2 lb)
Wind Loading	275 N at 200 km/h (61.8 lbf at 125 mph)
Wind Survivability	200 km/h (125 mph)
Radio Frequency
Supported Frequency Range - US/CA	U-NII-1: 5150-5250 MHz / U-NII-2A: 5250-5350 MHz / U-NII-2C: 5470-5725 MHz / U-NII-3: 5725-5850 MHz
Supported Frequency Range - Worldwide	5150 - 5875 MHz
Softver
Operating Modes	Access Point / Station
QoS	WMM packet classification with user-level priority: High, Medium, Low
Specifikacije
Grupa proizvoda	airMax
System
Pojačanje antene	23 dBi
Total Throughput	450+ Mbps
